Marzocchi

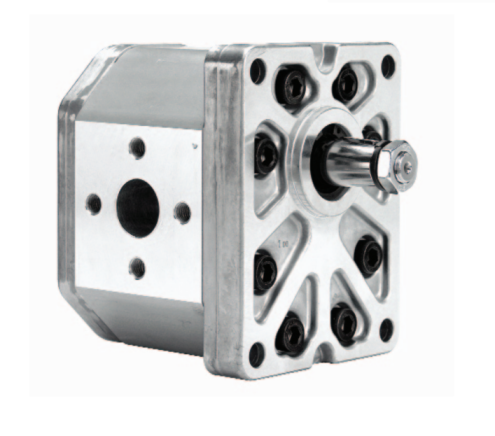

ALP3 Series Gear Pumps

Advanced production techniques and FEM simulations boost the performance of the ubiquitous external gear pumps employed in modern hydraulic systems. These pumps are available in varying models, feature high overall efficiency of 90%+, and can be supplied with optional integral relief valves.
Our expansive range of hydraulic pumps, backed by our ability to select the ideal pump for any task, can be obtained in formats like SAE and DIN with materials suitable for various fluids and environmental conditions. Further, Marzocchi’s cast iron bodied and flanged hydraulic gear pumps offer superior pressure, stability, and durability.
Reversible units, gear motors, and our other pumps are ideal for industrial processes, agricultural applications, offshore marine activities, heavy plant, and commercial equipment.

ALP 3 Series
Aluminium bodied, aluminium flanged, hydraulic gear pumps with displacement from 20 to 87 cc/rev. max. speed 2,000 to 3,500 rpm, flow at 1500 rev/min 29 to 124 litres/min, depending on model.

Technical Information:
Group 3
Medium: Hydraulic oil
Viscosity (cSt): Allowed 6-500, recommended 10-100, start
Working Temperature: -10⁰C +80⁰C
Inlet pressure: 0.7-3 bar
Ports: Standard European port
Ø Mounting hole flange: European 4-holes mounting
Material front and back cover: Aluminium
Material housing: Aluminium
Sealing: NBR
Material gears: Special hardened steel
Pump type: ALP
Direction: Clockwise (CW)

If you are looking for a tandem or multiple gear pump, please contact us via details below.

Full List Of ALP3 Series Pumps;
ALP-3D30
ALP-3D33
ALP-3D40
ALP-3D50
ALP-3D60
ALP-3D66
ALP-3D80
ALP-3D94
ALP-3D110
ALP-3D120
ALP-3D135

Can't Find A Part? Ask us!
We specialise in sourcing hard to find specials, oddballs & obsolete parts, get in touch if you can't see what you are looking for.
